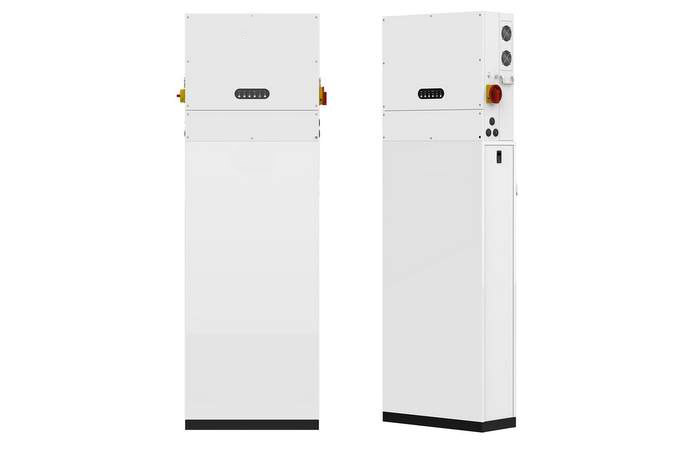

Series: UV-DOGEV1
POWERFUL ENERGY SOURCE FOR YOUR HOME!
Two or More units can be paralleled to support more demand or longer hours of battery operation.
One of the most powerful batteries on the market can be used to charge your electric vehicle, power your critical loads, and run your AC unit(s) while the utility service is disrupted.
Two Units together, provide 100A continunous current while meeting a surging demand up to 175A for 10 seconds.
Additional pros:
- Reliable Design
- Real Time Management
- More Efficiency
- Competitive Price
- Crypto Mining Rig Compatible
- Warranty
TECHNICAL SPECIFICATIONS:
System Integration
| Hybrid inverter + battery + transfer
switch + AC shutoff + EMS Gateway |
Continuous Output Power
| 12.5 kVA |
Peak Output Power | 21 kVA @10s;
35 kVA @20ms
|
Rated / Usable Battery Capacity | 20 kWh / 19.5 kWh |
Battery Chemistry | LiFePO4 (LFP) |
Cycle Rating | 6000 |
Solar – Battery – Load Efficiency | 92.7%
(DC-DC-AC) |
Heaviest Part Weight | 153 lbs (69.6kg) |
Estimated Installing time | 2 hours |
On/Off Grid Scenario | On and off grid |
Generator Support | YES |
AC Coupling
| YES
|
Direct Photovoltaic Input | YES |
Field Serviceable | YES |
Crypto Mining Capable
| YES
|
